The XRS Series 13000lb winch

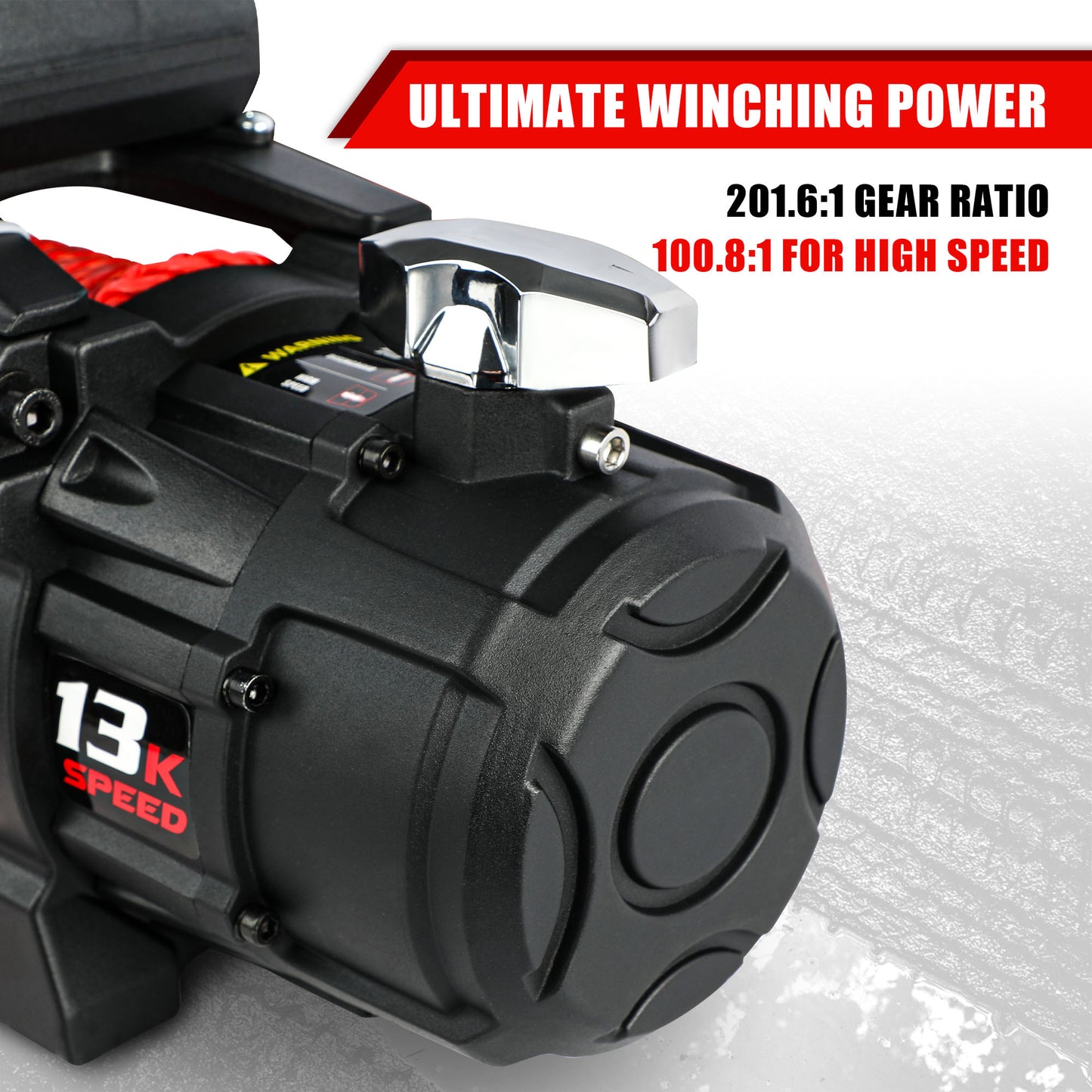

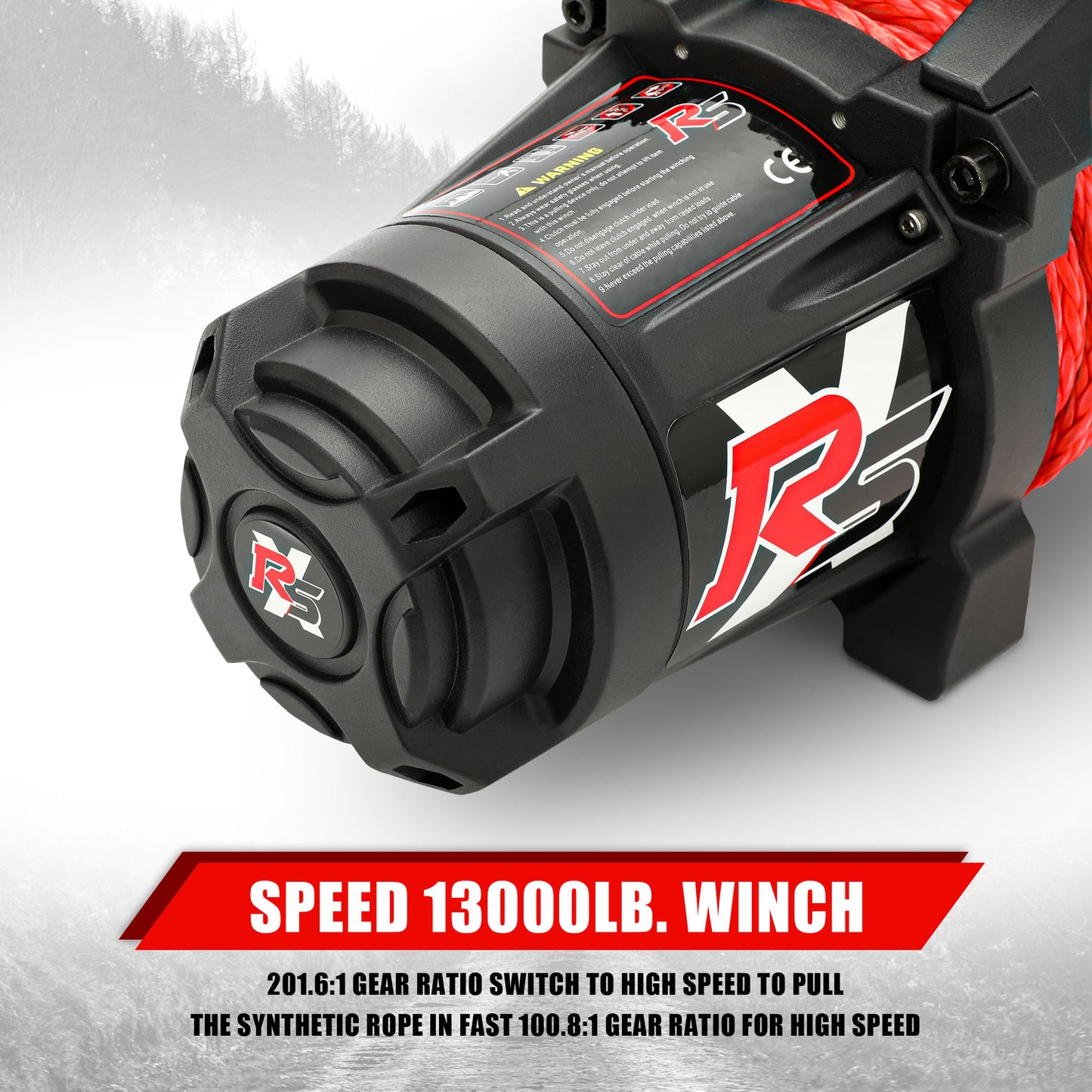

The XRS series winch is the ideal combination of speed, innovation and performance for the user. Real gear change, non-motor acceleration. Integrated electrical control box, built-in wireless remote control, 3/8 'diameter synthetic cord.The XRS series winches exceed the most demanding standards of today's modern cars while offering affordable fashion design and incorporating many top-notch leading features not found in other high performance winches. Featuring IP67 rating for dust and water resistant operation, and a durable black sand plastic pellet coating complete . Switch to high speed to pull the synthetic rope in fast. The extra-long wiring harness is long enough for any vehicle and makes use of a quick-disconnect winch power cable.

Specifications

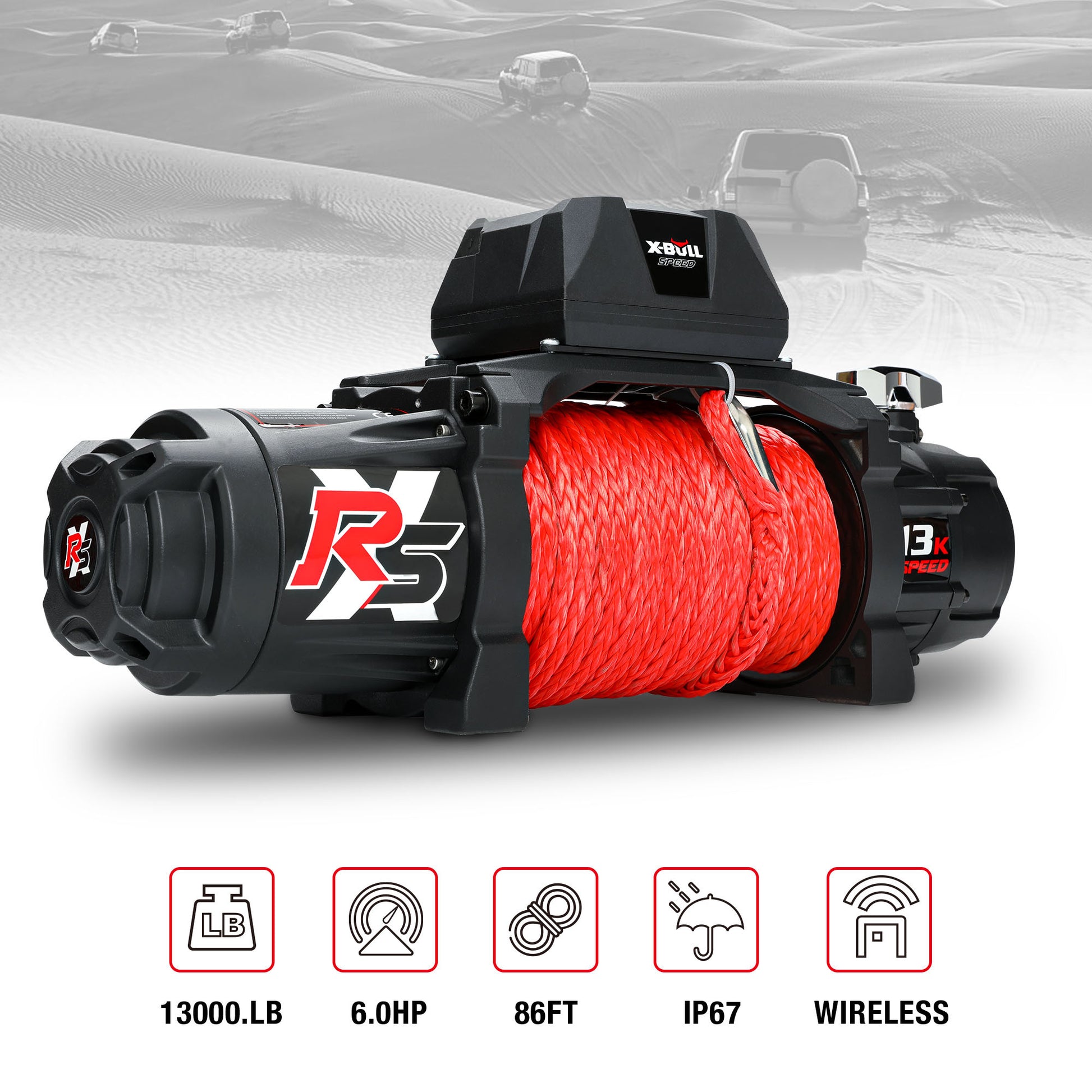

Rated Line Pull: 13000 lbs Motor: 6.0hp Gear Ratio: 265:1 Recommended Battery: 650CCA Minimum Remote Control: 2 in 1 remote Control: Remote Switch,12ft(3.7m)Lead Cable Length: 9.5mm x 26m Gear Train: 3 Stage planetary Battery Leader: 2gauge,72'(1.83m) Fairlead: Aluminium Hawse Fairlead Weight: 59.5lbs (27.0Kgs) Material: Stainless Steel Brake: Automatic Load-Holding Brake Drum Size: 2.52' × 9' (64mm × 228mm) Mounting Bolt Pattern: 10.00±0.015' × 4.50±0.010' (254mm × 114.3mm) Cable Material:Synthetic Rope Dimensions: 600mm×340mm×260mm

Package included

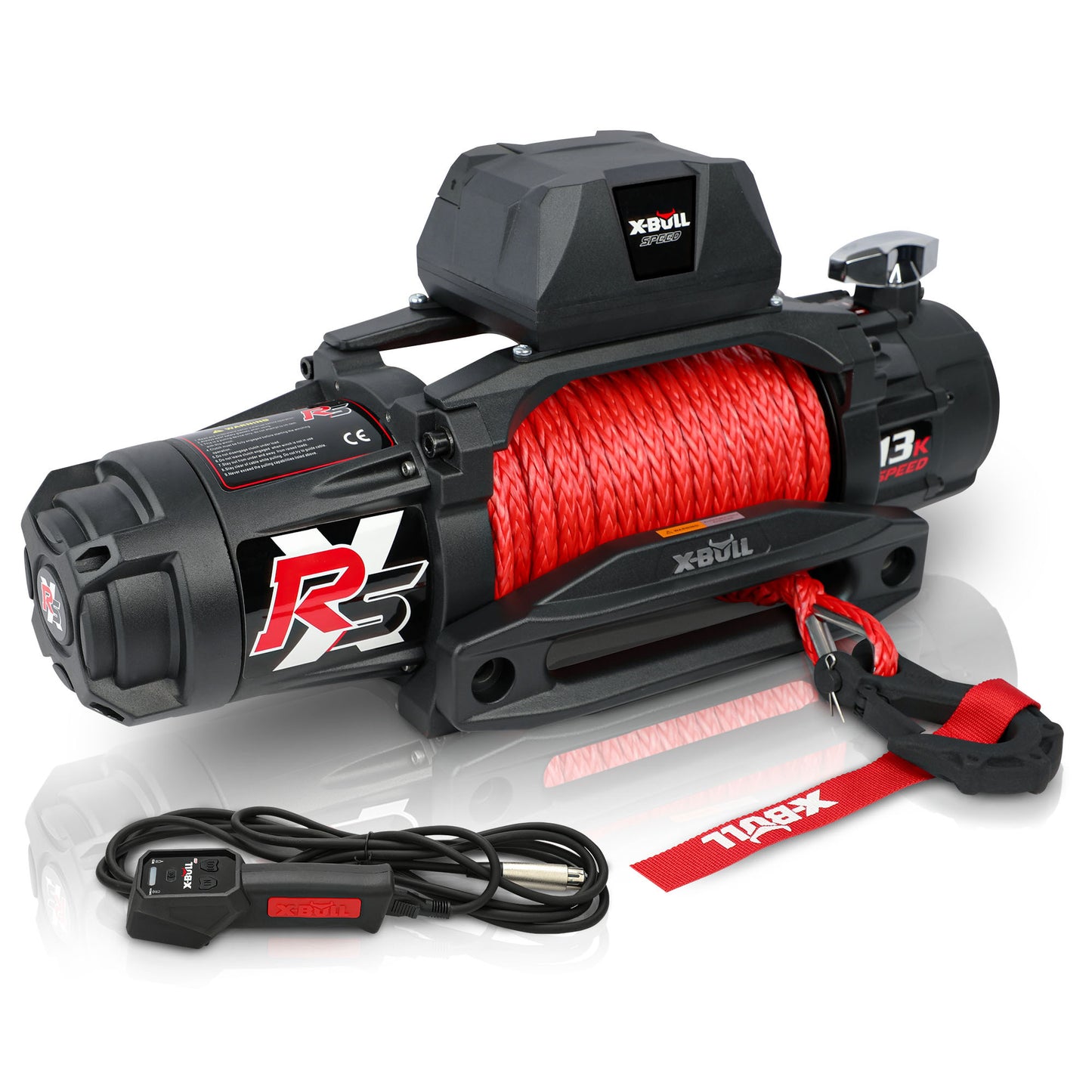

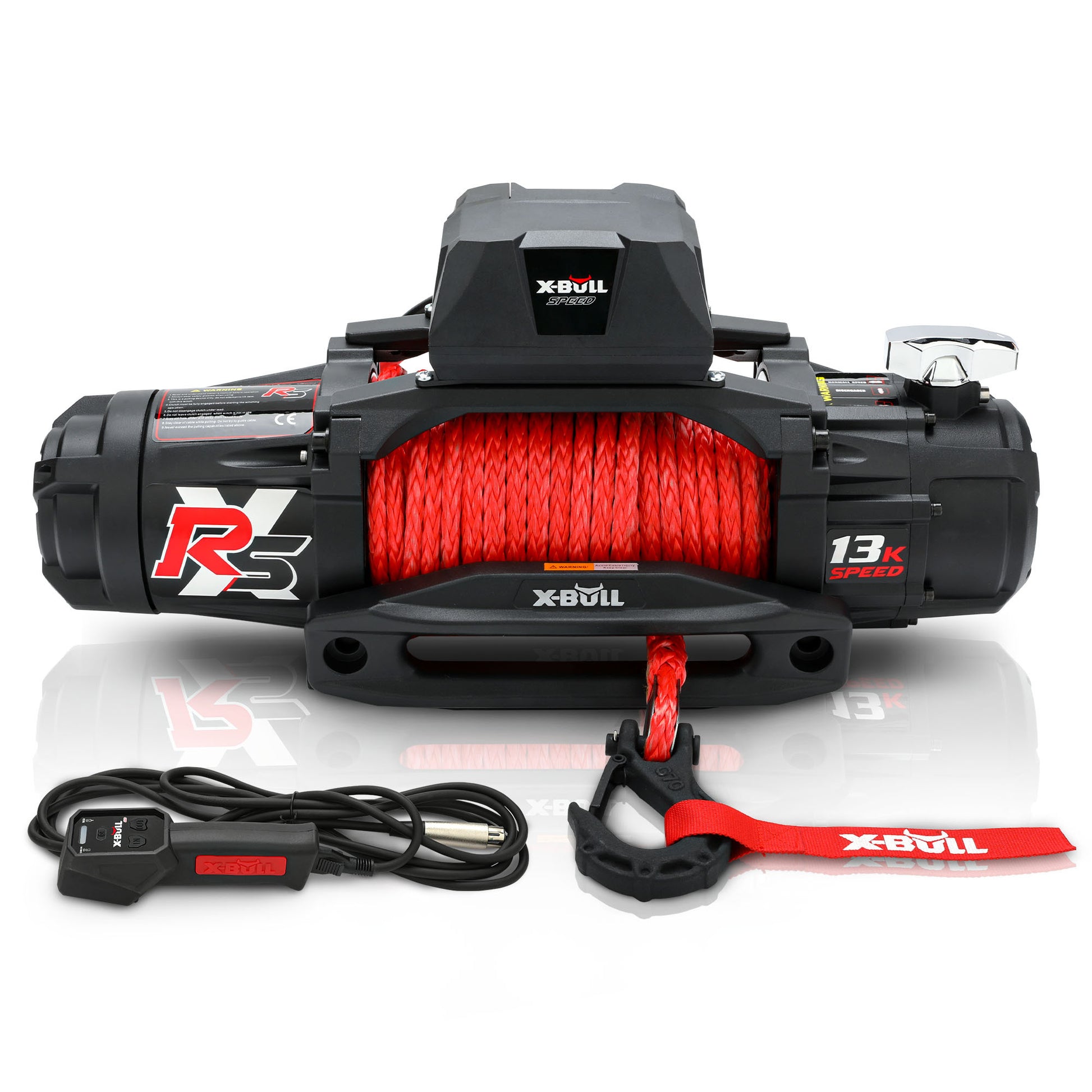

13000LBS winch*1 Hand switch *1 Motor Leads *3 Multi-functional remote control *1 Aluminium hawse fairlead *1 Clevis hook *1 Power leads *1 Set of bolts *1 Control box *1 User manual *1

Safety tips:

Using a winch can be dangerous, so be sure to follow the following tips to minimise the risk of personal injury or equipment damage. Be sure to wear thick work gloves when handling winches, as cables can easily damage your hands When rewinding the cable, do not let the cable pass through your hand If you are using trees as anchors, always wrap tree trunk protectors near the bottom of the ground; Wrap it too high, and there's a lot of leverage that can uproot the tree For extreme winch conditions, use a heavy blanket, drag or winch to weigh the strained cable. This helps absorb the released energy and makes it more likely to fall to the ground if it is released suddenly and suddenly When using a winch with others, use a set of agreeing gestures to prevent communication errors Do not stand on tight winch lines - do not straddle the winch line and avoid standing between the towed object and its anchor. If the line gets stuck and hits you, you can easily trip and risk serious injury. Check the condition of winch regularly; Before each cross-country drive, check the cable for corrosion, kink or wear, and check the surface of the roller. Clean the winch regularly - if it is dirty, damage will be harder to detect and the dirty metal will rust faster Never hook the cable on itself as this can cause damage and increase the risk of the clasp - always use a tree trunk protector instead Always make sure the hook opening is facing up - if the hook fails, these forces are on the ground and not in the air
